If you’re looking for more efficient ways to improve the construction process, you and your crew should look into pump jacks.
Pump jacks are an essential tool in the construction and roofing industry, since they provide a safe and efficient means of elevating scaffolding platforms for tasks such as roofing, siding, painting, and more. Pump jack systems are commonly used for their versatility, ease of use, and cost-effectiveness.
In this article, the Badger Ladder team will discuss how pump jack systems work, their components, and their benefits in various building projects. Let’s dive into what a pump jack system is and how it can benefit you and your crew:
What is a Pump Jack System?
A pump jack scaffold system is a type of scaffolding that consists of a platform supported by vertical poles, which can be raised or lowered using a foot-operated pump.
This mechanism allows workers to adjust the height of their work area without needing to disassemble and reassemble the scaffold, saving time and enhancing efficiency on the job site.
Shop pump jacks with Badger Ladder! We are your source for construction equipment for more than 30+ years. Contact our team or give us a call at (800) 863-9791 today with questions on how pump jacks work!
Key Parts of a Pump Jack System
- Poles: Typically made of sturdy aluminum, the poles are the backbone of the pump jack system. They are designed to support the weight of the platform and workers. For more height, you can connect the poles with additional sections to reach heights of up to 48 feet.

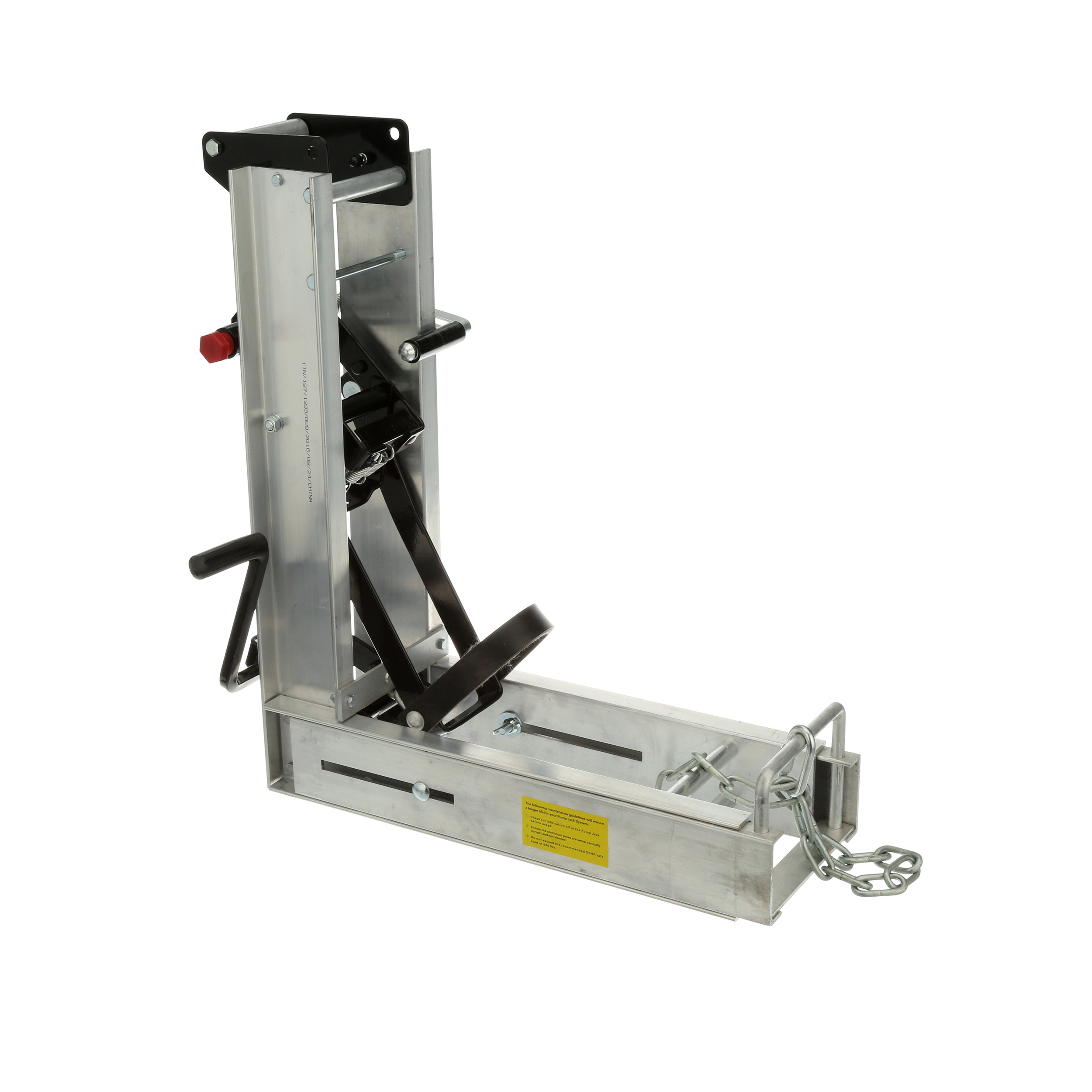

- Pump Jacks: These are the core components that attach to the poles and allow the platform to be raised or lowered. Operated by a foot pump, the pump jacks engage a gripping mechanism to securely move the platform up or down along the poles.
- Platform: The work platform is supported by the pump jacks and consists of scaffold planks. It provides a stable surface for builders and roofers to perform their work. The platform is adjustable, making it ideal for workers to perform tasks at varying heights.
- Braces and Benches: Braces secure the poles to the building structure, providing stability to the entire system. Benches serve as additional support for the workers and can be used to hold tools or materials.
- Guardrails and Safety Equipment: Safety is paramount when using pump jack systems. Guardrails should be installed on all open sides of the platform to prevent falls. Additionally, workers should use fall-arresting gear and safety nets to minimize risks.
Find all the parts you need for pump jack assembly on our pump jack system parts page.
How Does a Pump Jack System Work?
1. Assembly
To set up a pump jack system, start by attaching the support braces to the roof or wall of the building. Connect the aluminum poles using pole connectors, and then slide the workbench onto the poles. Secure the pump jack to the pole and align it with the mounting holes on the workbench. Attach the pole to the support brace and ensure it is properly secured.
We detail more about the assembly process and the parts you’ll need on our build your own pump jack category page.
2. Raising and Lowering
Once the pump jack system is assembled, the platform can be raised or lowered using the foot-operated pump on the pump jacks. This allows workers to adjust their work height as needed without having to move the entire scaffold system. The pump mechanism works by engaging a gripping action on the pole, securely lifting or lowering the platform.
3. Safety Considerations
Always ensure that the weight on the platform does not exceed the system’s capacity—typically around 500 lbs. Additionally, no more than two workers should be on the platform at any given time. Guardrails, safety nets, and proper use of fall-arresting gear are crucial to maintaining a safe work environment.
Benefits of Using a Pump Jack System
- Versatility: Pump jack systems are ideal for a wide range of construction tasks, including roofing, siding, painting, and insulation. Their adjustable nature makes them suitable for projects that require work at different heights.
- Efficiency: The ability to raise and lower the platform without disassembling the scaffold saves significant time and labor, making pump jacks a cost-effective solution for contractors.
- Easy Assembly and Portability: Pump jack systems are designed for quick assembly and disassembly, making them easy to transport and set up at different job sites.
Choosing the Right Pump Jack System
At Badger Ladder, we offer a variety of pump jack packages designed to meet the needs of any construction project. Our Titan pump jack systems are built with high-quality aluminum components, ensuring durability and safety and meet all OSHA standards. We provide both pre-assembled packages and customizable options, allowing you to build your own system based on specific project requirements.
Our Pump Jack System Packages
For projects that demand reaching greater heights, our pump jack systems can achieve up to 48 feet by utilizing two 24-foot poles, an extra joint, and an additional brace. This makes them an ideal choice for larger-scale construction or remodeling projects.
Our pump jack packages include:
- Pump Jack Basic
- Package #2 (2)12″ x 24′ Stages
- Package #3 (2)14″ x 24′ Stages
- Package #4 (2)20″ x 24′ Stages
- Package #5 (2)24″ x 24′ Stages
- Package #6 – 24′ long x 48′ high
- Package #7 – 48′ w x 24′ h
Contact Badger Ladder for Pump Jack Systems!
Build your own pump jack package with Badger Ladder! Pump jack systems offer construction workers a safe, efficient, and versatile solution for working at great heights. By understanding how these systems work and the benefits they provide, contractors can enhance productivity and safety on their job sites.
For high-quality pump jack scaffolding systems, let Badger Ladder be your trusted source. Explore our range of pump jack packages and discover the right solution for your next project. For any questions, contact our team at (800) 863-9791 or email us at orders@badgerladder.com.
